Echo Transient with Phase Cycle(#6)

This example demonstrates how to load and plot an echo transient (time trace) of a stimulated echo using a 64-step phase cycle to remove all unwanted echoes.

import spinlab as sl
import numpy as np

Once the Python environment is properly set up the data files can be loaded.

data_E580 = sl.load("../data/EPR/Echo-Transient-Phase-Cycling/33726-ETPC.DTA")
data_E580.attrs["experiment_type"] = "epr_transient_E580"

E580: BDPA/PS

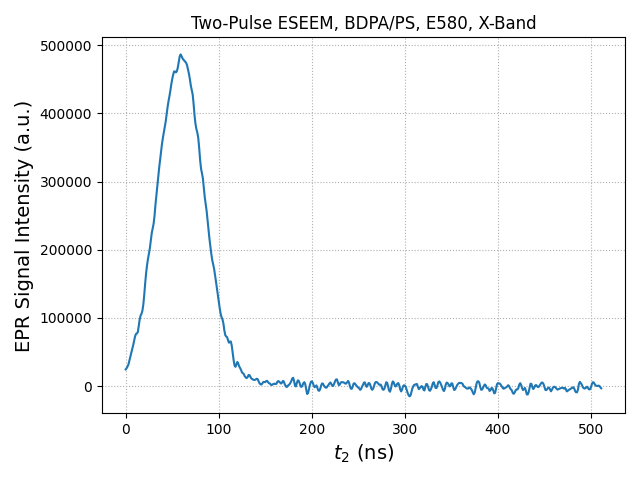

sl.plt.figure()
sl.fancy_plot(data_E580)
sl.plt.title("Two-Pulse ESEEM, BDPA/PS, E580, X-Band")
sl.plt.show()

The data set can be downloaded from the Sample Data page.
